32 inch 710HE Greenhouse Fan With CE

Greenhouse Fan,Greenhouse Fan With CE,Stainless Steel Blade Fan,Stainless Steel Blade Material Greenhouse Fan With CE

Description

Stainless Steel Blade Material Greenhouse Fan With CE


What Specifications of Air Cooler ?

1, Six 430 stainless steel blades which are formed in one step are aesthetic , no dust, resistant to deformation and durable. The volume of air is in a large amount because it is designed in special shape of blades without deformation and completion. The volume can maintain the same amount all the time. It is 1.2mm thick with the surface finish at BA grade.
2, High strength of the aluminum magnesium alloy can be used to make the fan belt pulley by means of die-casting so as to make the blade impeller completion lighter in weight featured with high resistance against the corrosion. With three reinforced ribs pulley design, the treatment of blast sanding can contribute to charming appearance, and the own rigidity and stability can be improved under the elimination of the internal stress.
3,Greenhouse Fan frame adpot the international standard plate, the thick zinc coating 275g/sqm ensures great corrosion resistance, the bottom outlet design makes fan structure more reasonable
4, Motor from famous brands in China and Siemens can be accessible with the voltage and frequency of motor can be provided with customized services. Chinese motor OEM by special design for fan, the first put in the phase lack protection device which would power off when shortage of electricity. Motor protection grade IP55, insulation class F grade.
5, Greenhouse Fan With CE bearing is the double row bearing which is imported and designed to be waterproof featured with high strength, less noise, free charge of maintenance fee and long service life.
6, The belt brand is SANLISHI with long service life and free charge of maintenance.
7, Using high strength nylon swung drop hammer opening device to ensue the shutters opening and closing flexibly.
8, Intelligent dynamic balance tester can adjust the blades with every tolerance weight of the blade within 1g. The fan can smoothly run with lower vibration, less noise and more stability. The blade can be made of stainless steel, aluminum alloy, FRP or the galvanized sheet.
9, Rust can be prevented by safe net as well as the hot-dip galvanized blade.
10, Stainless Steel Blade Fan quality can be improved to be the top grade as well as the aesthetic appearance due to the completely newly CNC production line.

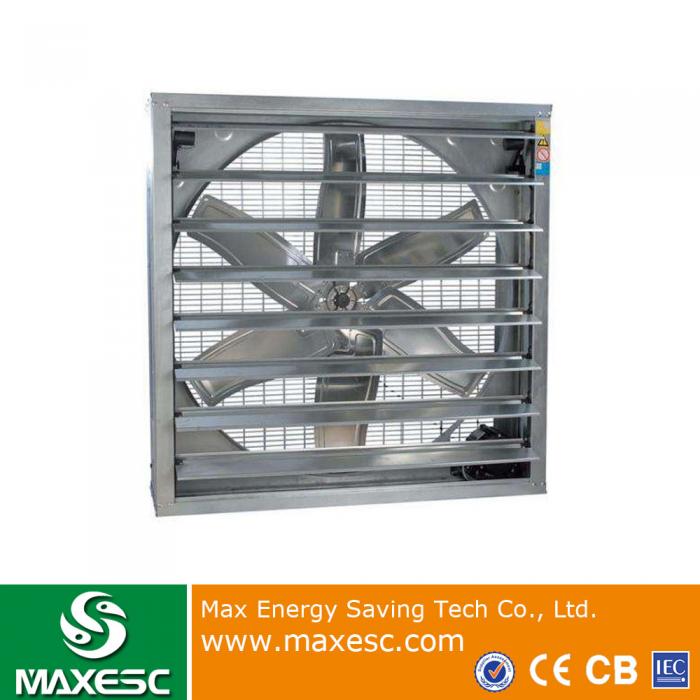

Product Picture

What More Detailed Pictures ?




Product Features
FAQ

What More Questions ?


  • QWhat is the MOQ ?
  • ANormally 20GP for big unit , 40HQ for small unit .
  • QHow about the air cooler material ?
  • AIt make 100% by NEW plastic ,and 100% pure copper for motor .
  • QWhat voltages you can do , if we can make special voltages?
  • AAlmost all kinds of voltages we all can make .
  • QI want to use our own brand , is it ok?
  • AOf course it's OK , we can make OEM products and also can provide our own brand products,it's all by your request .
  • QWhat payment term ?
  • ANormally T/T or L/C we can accept .
  • QWhen you ship my order?
  • ANormally 7-30days after receiving your payment, but it can be negotiated based on order qty and production schedule.
  • QHow about the warranty ?
  • AAll the unit we have one year warranty .
Hits: 【Print】

Additional information

Name:32 inch 710HE Greenhouse Fan With CE
Model:ESC-710
Max Airflow:18000CMH
Voltage:220-415V/50-60Hz
Power:370W
Diameter Biades:(29 inch)710mm
Size:800x800x400
Total Pressure:60 Pa
Biades Rotational Speed:660
Noise Decibels:60
Certification:IEC
Application:Industrial, warehouse,pheasantry,cowhouse,poultry
